Válvula Cuatro Tornillos con Mounting

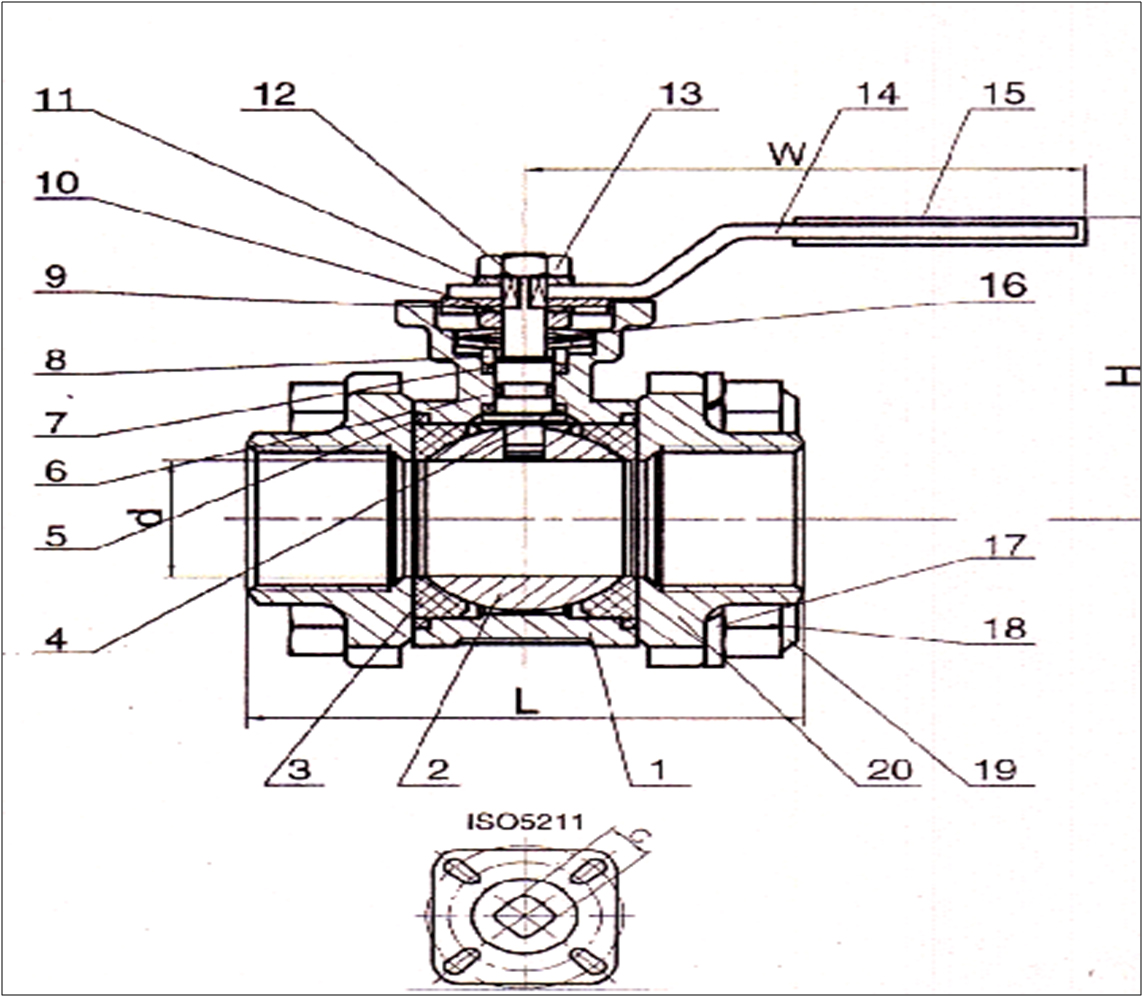

3- PC BALL VALVE WITH MOUNTING PAD
Investment casting for body and cap
Full bore
threared ends: ANSI B2.1, BS 21, DIN 259/2999
Pressure rating: 1000Psi(PN63)
Working temperature: -25 + 180°C
Material: CF8M, CF8, CF3M, WCB
Mounting Pad: ISO 5211
|
SIZE |
D |
L |
H |
W |
C |
ISO 5211 |
N.m |
Kgs |
|
1/4" |
11.6 |
48 |
62 |
111 |
9 |
F03 |
4 |
0.38 |
|
3/8" |
12.7 |
48 |
62 |
111 |
9 |
F03 |
4 |
0.37 |
|
1/2" |
15 |
55 |
63 |
111 |
9 |
F03 |
5 |
0.42 |
|
3/4" |
20 |
74 |
70 |
136 |
11 |
F04/F05 |
8 |
0.82 |
|
1" |
25 |
81 |
73 |
136 |
11 |
F04/F05 |
10 |
1.02 |
|
1 1/4" |
32 |
91 |
88 |
159 |
14 |
F04/F07 |
14 |
1.84 |
|
1.5" |
40 |
103 |
93 |
204 |
14 |
F04/F07 |
18 |
2.53 |
|
2" |
50 |
120 |
101 |
204 |
14 |
F04/F07 |
25 |
3.52 |
|
2.5" |
65 |
155 |
143 |
250 |
17 |
F04/F10 |
48 |
8.80 |
|
3" |
80 |
182 |
154 |
250 |
17 |
F04/F10 |
75 |
12.6 |
|
4" |
100 |
220 |
164 |
250 |
17 |
F04/F10 |
110 |
19.5 |
