Tee Sanitaria
Tee sanitaria Acero inoxidable: AISI 304, 316L
Conexión: Soldar.
Estándar/Largo
Acabados: Decapado o pulido
Diámetros: 1/2” – 8”
Aplicación: Farmacéutica, Cervecera, Alimenticia, cosmética e industria química
|

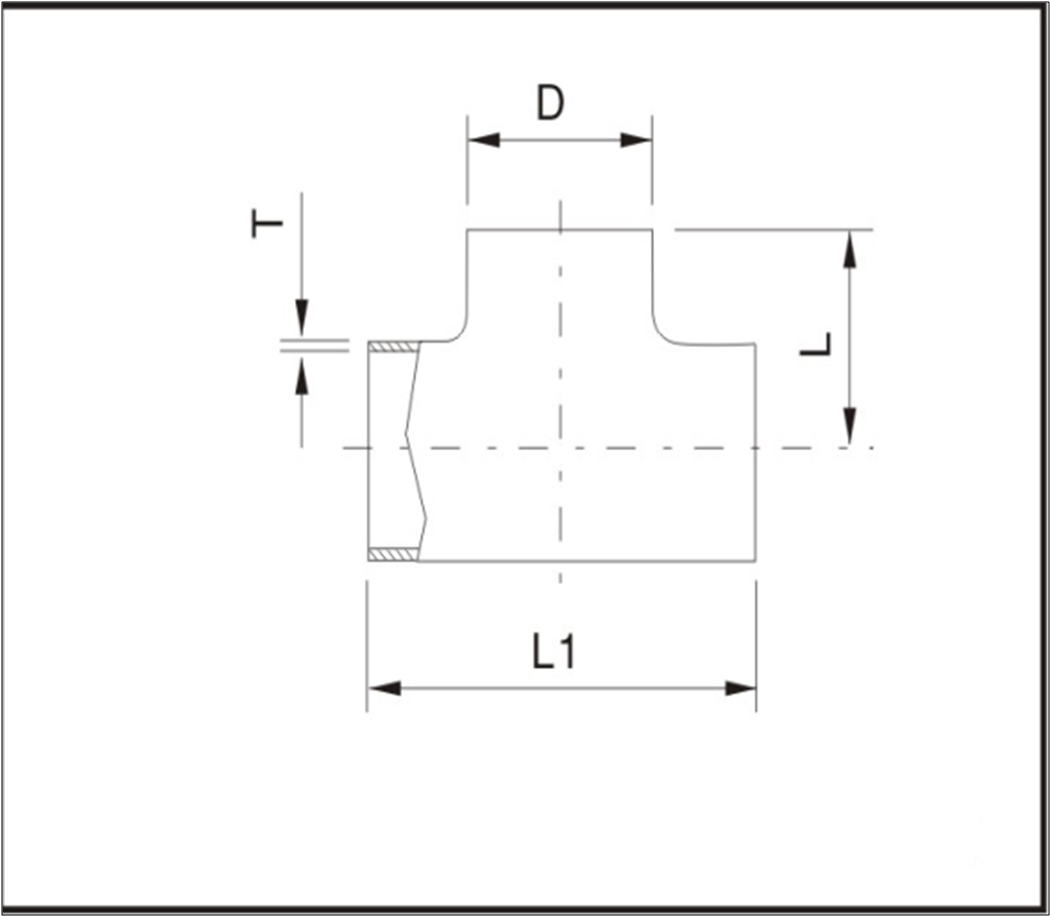

TEE IGUAL CORTA |
TEE IGUAL LARGA |
|||||||||
|
SIZE |
D |
L |
L1 |
T |
SIZE |
D |
C |
L1 |
T |
|
|
1" |
25.4 |
28 |
57.2 |
1.65 |
1" |
25.4 |
47.6 |
95.2 |
1.65 |
|
|
1,5" |
38.1 |
42 |
84.2 |
1.65 |
1,5" |
38.1 |
57.2 |
114.4 |
1.65 |
|
|
2" |
50.8 |
52 |
104.8 |
1.65 |
2" |
50.8 |
76.2 |
152.4 |
1.65 |
|
|
2.5" |
63.5 |
59 |
119 |
1.65 |
2.5" |
63.5 |
76.2 |
152.4 |
1.65 |
|
|
3" |
76.2 |
65 |
131.8 |
1.65 |
3" |
76.2 |
82.6 |
165.2 |
1.65 |
|
|
4" |
101.6 |
87 |
174.6 |
2.1 |
4" |
101.6 |
98.4 |
196.8 |
2.1 |
|
